First Impressions

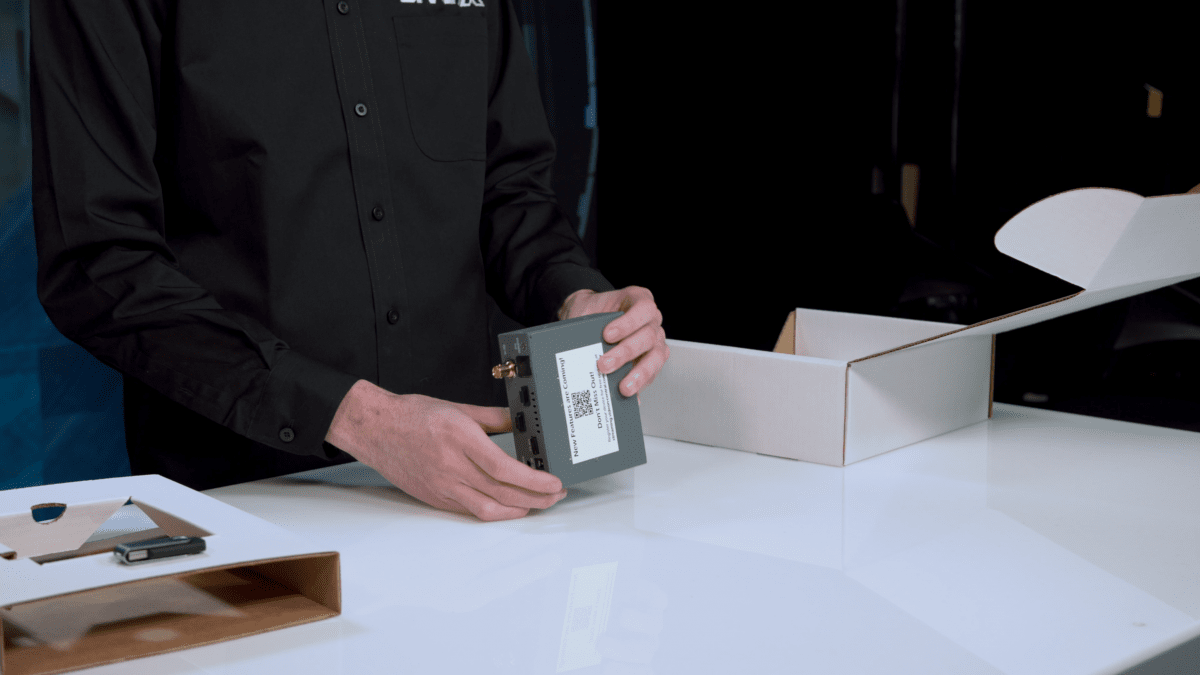

The Videon Shavano is a fairly small unit, which makes it easy to mount on a rack or hide it if necessary. It has an HDMI input (up to 2160p30) and output, a 3G-SDI input (up to 1080p60), 3.5mm Audio In, USB 3.0, SD card slot and Ethernet port (RJ-45). Audio can be embedded into HDMI and SDI. It is also PoE enabled. The action button on the Videon Shavano works both to start and stop RTMP encoding and also to perform a factory reset. The source light, record light and stream light make it easy to verify whether you are performing these functions or if something is wrong. It is nice to be able to know right away just by checking a light in front of the panel.

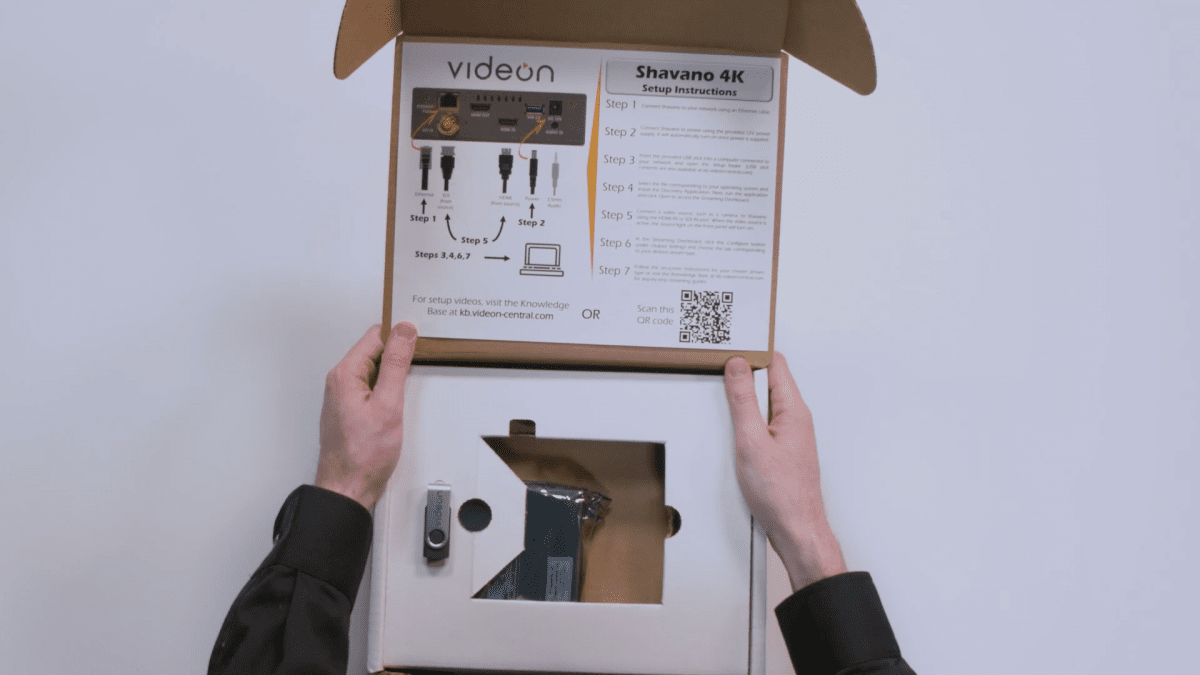

What’s in The Box?
Videon Shavano unit
Setup instructions
USB drive
Power supply and IEC
Features
Quad Core Qualcomm Snapdragon 820 (APQ8096) processor
Input and encode resolutions include 3840x2160p 30 and 1080p 60
Compression: H.265/HEVC (up to 4Kp30), H.264
Bit rates: .5Mbps-30Mbps; Rate control: Variable, Constant
Streaming capabilities: Up to 2x Unicast, 1x Multicast, and 1 x RTMP simultaneous channel output
RTMP, RTSP
Audio encode: MPEG-4 AAC-LC in ADTS 64-320kbps
Audio encode sampling frequency: 32, 44.1, 48KHz
PoE enabled
